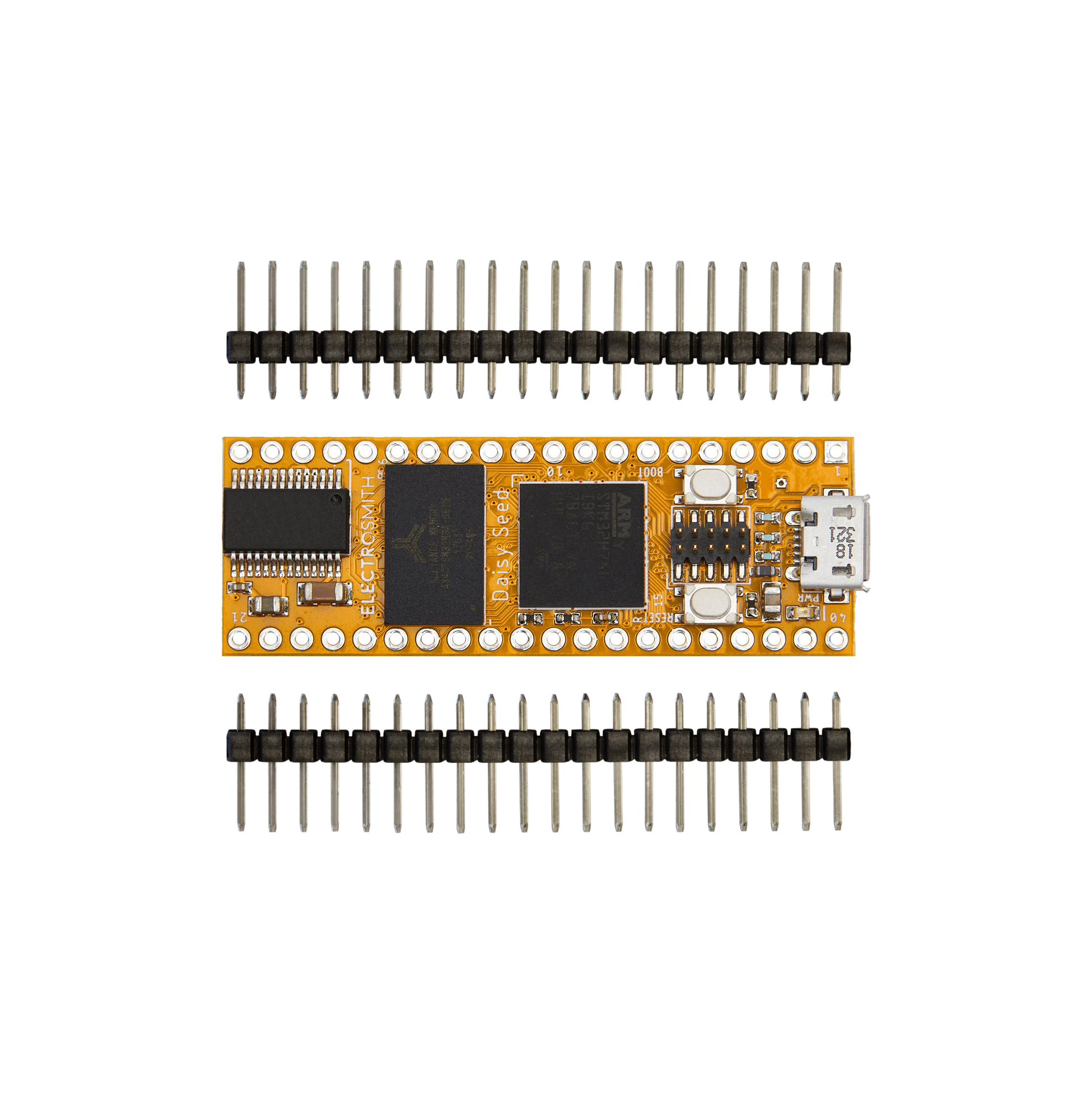

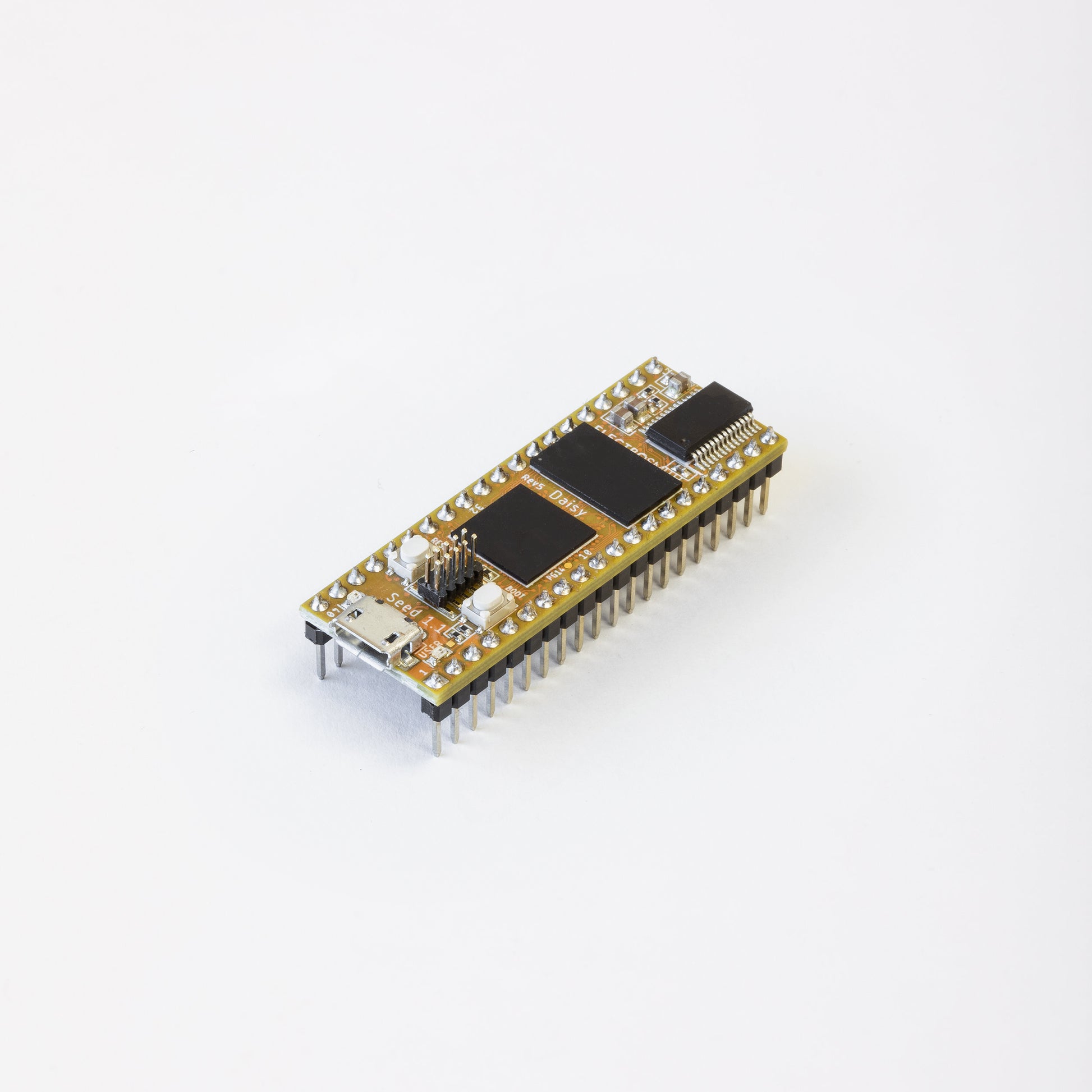

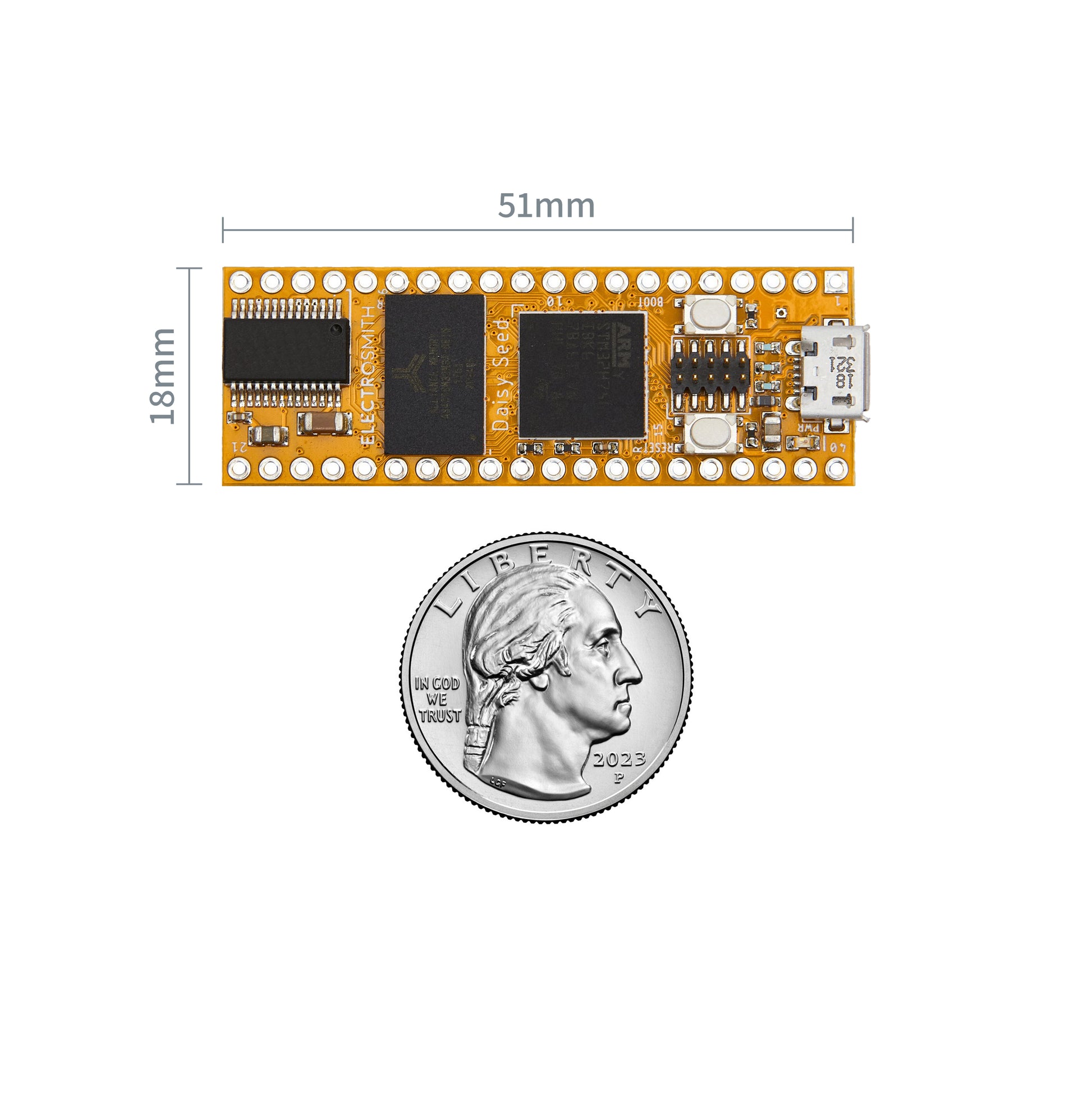

Daisy Seed

Supply Chain: Stable

Daisy is an embedded platform for music. It features everything you need for creating high fidelity audio hardware devices. Just plug in a USB cable and start making sound! Programming the Daisy is a breeze with support for a number of languages including C++, Arduino, and Max/MSP Gen~. To get started, simply upload an example program over USB, and start tweaking!

All firmware that we develop is released for free under a permissive open source license.

• Stereo audio IO - 96kHz / 24-bit audio hardware (AC-Coupled)
• Programmable in: C++, Arduino, Max/MSP gen~, Pure Data

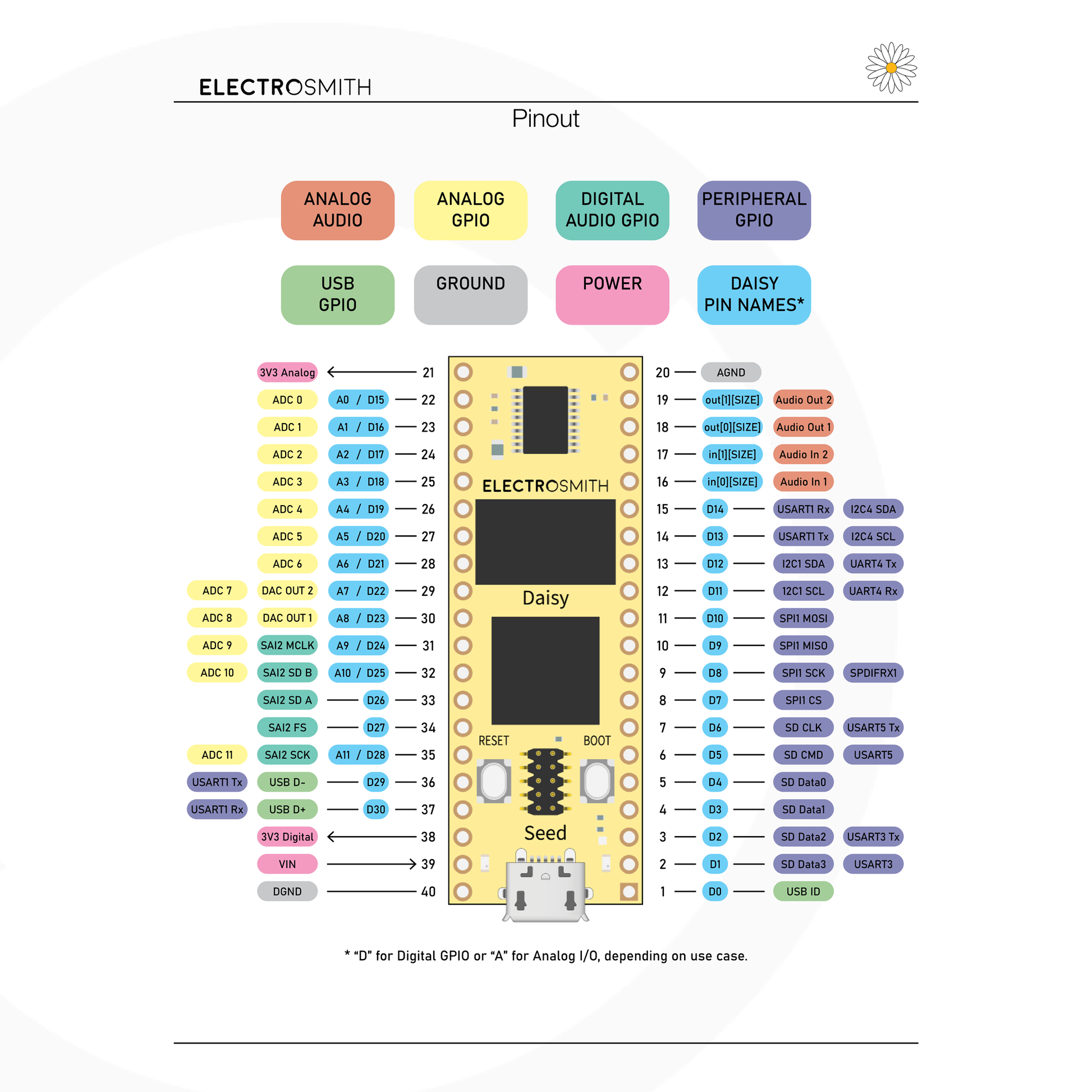

• x31 GPIO, x12 ADC inputs (16-bit), x2 DAC outputs (12-bit, DC-Coupled)
• ARM Cortex-M7 MCU, running at 480MHz
• 64MB of SDRAM for up to 10 minute long audio buffers, 8MB external flash
• SD card interface, PWM outputs, and various serial protocols for external devices (SPI, UART, SAI/I2S, I2C)
• Dedicated VIN pin for external power

Documentation and Technical Assets: daisy.audio
