Electrosmith

Pod

Pod

Regular price $68.00
Regular price Sale price $68.00
Sale Sold out
Shipping calculated at checkout.

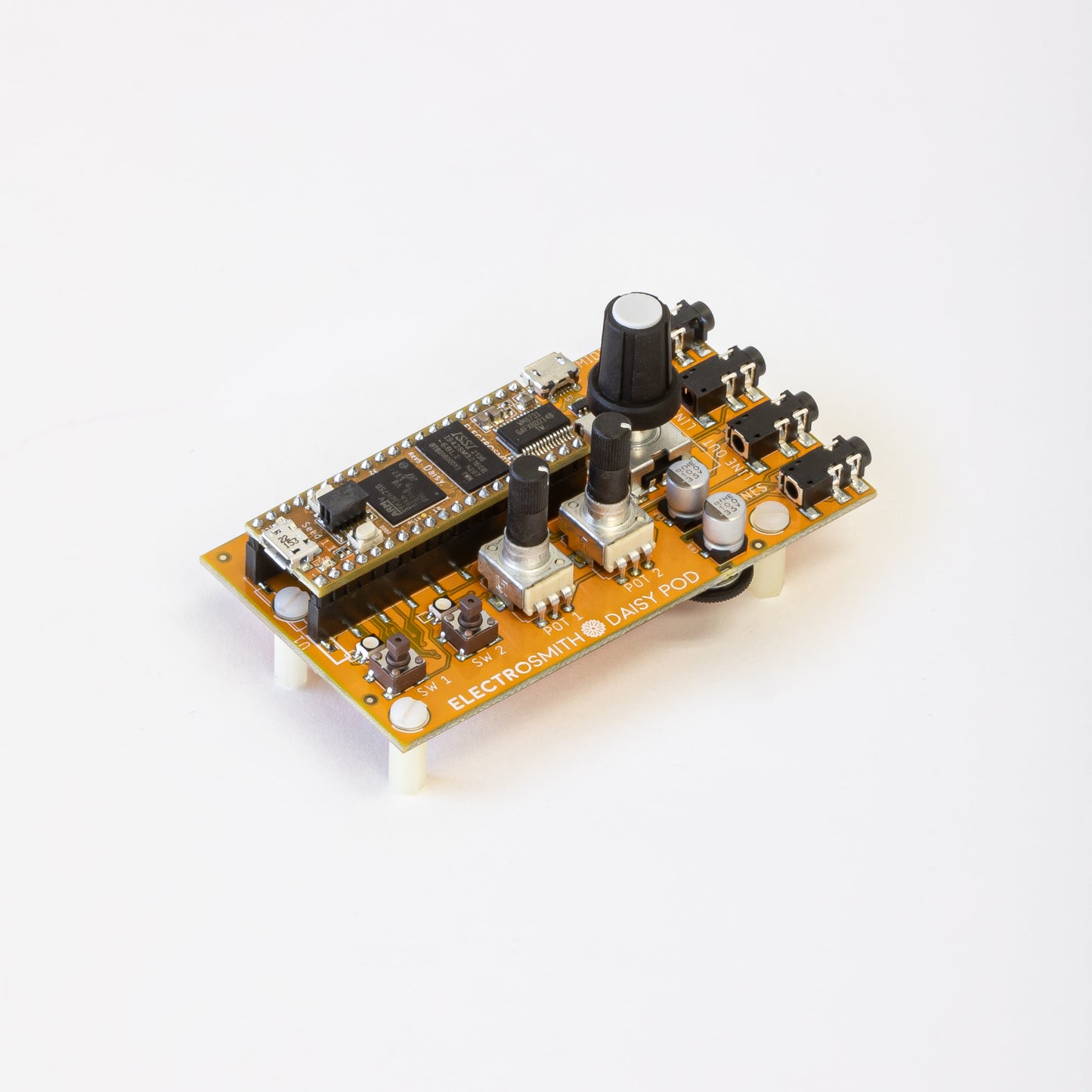

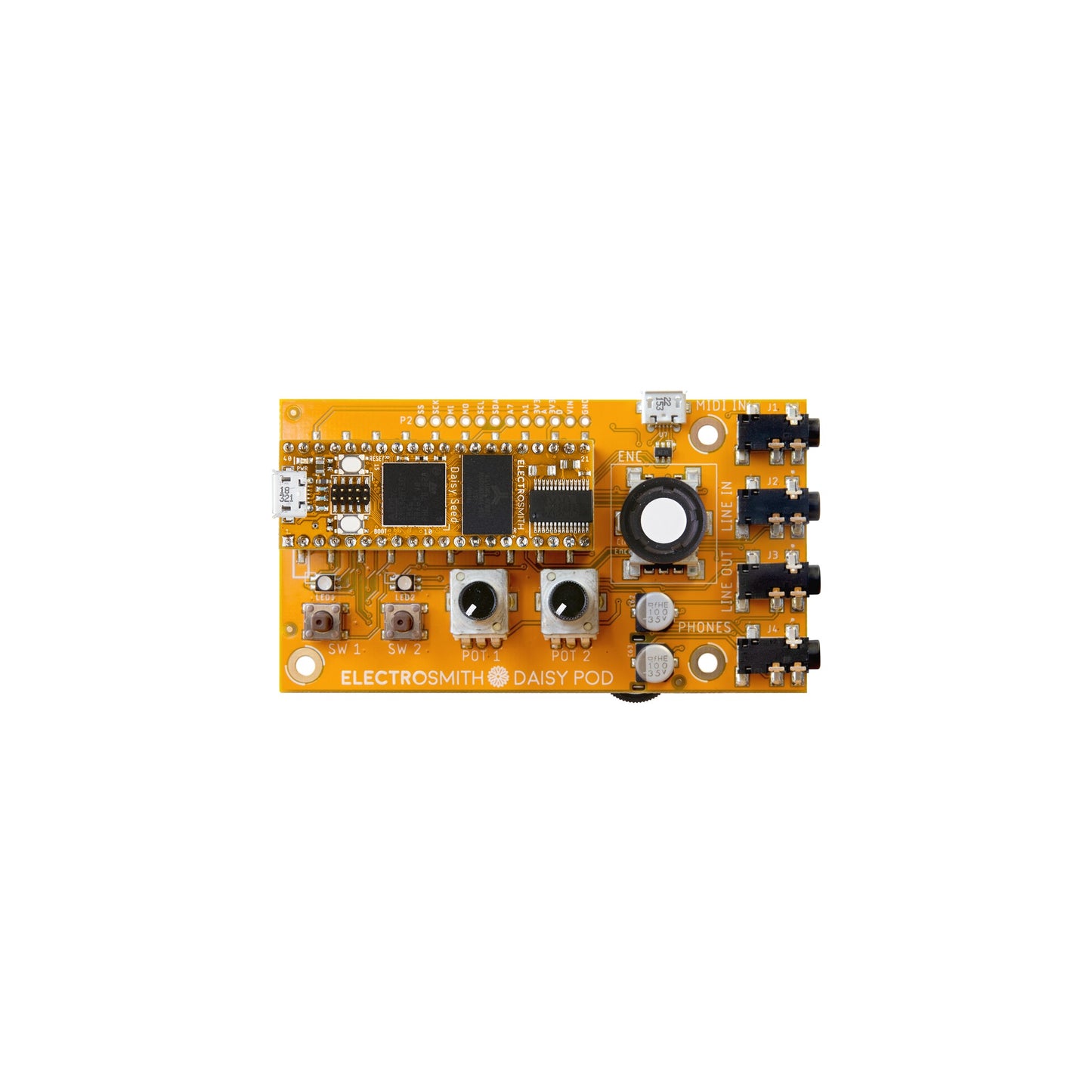

Start programming the Daisy without breadboarding! The Pod is a USB powered breakout board for the Daisy. With stereo line level I/O, MIDI input and headphone output with a dedicated volume control, this is the feature-packed, small-form breakout to get started with for development. Comes with Daisy installed.

Resources: Documentation, and examples are hosted on our GitHub repository for easy download. All firmware that we develop is released for free under a permissive open source license(MIT). Check out the getting started wiki page!

  • USB Powered
  • 3.5mm stereo jacks for line level audio I/O, headphone output, and TRS MIDI input.
  • Built In headphone amplifier with dedicated volume control.
  • 2 Buttons, 2 RGB LEDs, and rotary encoder with push button.
  • SD Card Slot, and secondary USB micro port

Note: Powering the Pod from a computer may induce hum from a ground loop. We recommend using a USB power brick or comparable power source for best audio performance.

Technical Documents
